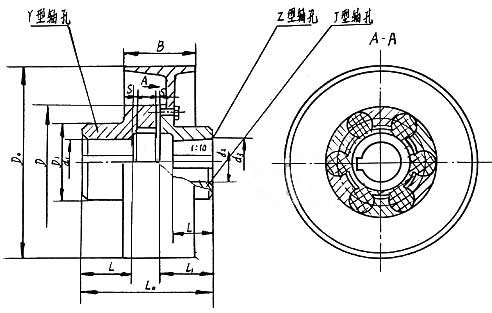

MLL-I(LMZ-I)型分體式制動輪梅花形彈性聯軸器的參數及主要尺寸：(GB/T 5272-85) mm
|
型號 |
公稱轉矩
Tn
N.m |
軸孔直徑
d1,d2,dz |
軸孔長度 |
L0 |
D0 |
B |
D |
彈性件
型號 |
質量
kg | |
|
Y |
Z,J | |||||||||
|
L、L1 | ||||||||||
|
MLL4-I-160 |
140-400 |
25-42 |
62-112 |
44-84 |
151-251 |
160 |
70 |
105 |
MT4 |
8.5 |
|
MLL4-I-200 |
200 |
80 |
9.5 | |||||||
|
MLL5-I-200 |
250-800 |
30-48 |
82-112 |
60-84 |
197-257 |
200 |
85 |
125 |
MT5 |
13.8 |
|
MLL6-I-200 |
400-1120 |
35-55 |
82-112 |
60-84 |
203-263 |
200 |
85 |
145 |
MT6 |
16.7 |
|
MLL6-I-250 |
250 |
105 |
21.7 | |||||||
|
MLL6-I-250 |
710-2240 |
45-65 |
112-142 |
84-107 |
265-325 |
250 |
105 |
170 |
MT7 |
26.3 |
|
MLL7-I-250 |
315 |
135 |
34.7 | |||||||
|
MLL8-I-315 |
1120-3550 |
50-75 |
112-142 |
84-107 |
272-332 |
315 |
135 |
200 |
MT8 |
47.3 |
|
MLL8-I-400 |
400 |
170 |
61.3 | |||||||
|
MLL9-I-400 |
1800-5600 |
60-95 |
142-172 |
107-132 |
334-394 |
400 |
170 |
230 |
MT9 |
84.0 |
|
MLL9-I-500 |
500 |
210 |
108 | |||||||
|
MLL10-I-500 |
2800-9000 |
70-110 |
142-212 |
107-167 |
334-484 |
500 |
210 |
260 |
MT10 |
132 |
|
MLL11-I-630 |
4000-12500 |
80-120 |
172-212 |
132-167 |
411-491 |
630 |
265 |
300 |
MT11 |
197 |
|
MLL12-I-710 |
7100-20000 |
90-130 |
172-252 |
132-202 |
417-577 |
710 |
300 |
360 |
MT12 |
212 |
|
MLL13-I-800 |
8000-25000 |
100-140 |
212-252 |
167-202 |
497-577 |
800 |
340 |
400 |
MT13 |
294 |
